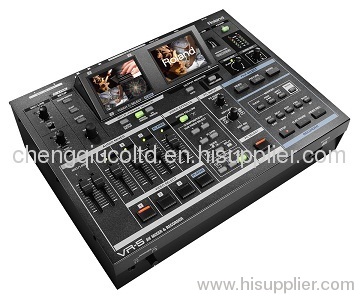

The Roland VR-5 AV Mixer & Recorder is a soup-to-nuts device that includes a video switcher, audio mixer, recorder, and preview monitors, and provides video playback and output for web streaming. Featuring minimal hardware, an easy connection, and a quick set up, it is ideal for school meetings, churches, council meetings, panels and corporate events.

Generic Spec:

VR-5 Specs:Video:Video Format: [Video] NTSC or PAL (ITU601)[PC-RGB] 640 x 480/120 Hz, 800 x 600/120 Hz, 832 x 624/75 Hz,1024 x 768/80 Hz, 1152 x 864/80 Hz, 1152 x 870/75 Hz,1280 x 1024/75 Hz, 1600 x 1200/60 Hz (RGB VH: positive/negative logic)VESA DMT Version 1.0 Revision 10 conform.The refresh rate is the maximum value of each resolution.

Video Sampling Rate: [Video] 4:2:2 (Y:B-Y:R-Y), 8 bits, 13.5 MHz

Frame Synchronizer: 5 systems

Input Level and Impedance: [Video (composite)] 1.0 Vp-p, 75 ohms[S-video] Luminance signal: 1.0 Vp-p, 75 ohmsChrominance signal: 0.286 mVp-p, 75 ohms (NTSC)/0.3 mVp-p,75 ohms (PAL)[PC-RGB] 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)

Output Level and Impedance: [Video (composite)] 1.0 Vp-p, 75 ohms[S-video] Luminance signal: 1.0 Vp-p, 75 ohmsChrominance signal: 0.286 mVp-p, 75 ohms (NTSC)/0.3 mVp-p,75 ohms (PAL)

Connectors: [Input] Video (composite): BNC type x 3, S-video: 4-pin mini DIN type x 3, PC-RGB: D-Sub 15-pin Shrink type x 1 Inputs 1 to 3; When S-video is simultaneously input to1 to 3, S-video takes priority[Output] Video (composite): BNC type x 2, S-video: 4-pin mini DIN type x 2[Preview Output] Video (composite): BNC type x 1

Video Effects: Luminance key, Chroma key, Picture in-picture, Split

Power Supply: DC 12 V

Current Draw: 3 A

Dimensions: 376 (W) x 314 (D) x 133 (H) mm

Weight: 4.3 kg
